Wine Master Arm15X - Ceiling Installation Unit

The WineMaster ARM15 air conditioner is designed to meet the highest standards of excellence, with its creative utilization of materials, its energy-efficient system, and its simplified installation process. This premier solution is perfect for cellars up to 15m³.

Wine Master ARM15 X is the ideal choice for wine collector who wants the best for their investment, as it ensures the proper temperature within a suitably insulated area.

With an effortless ceiling–mount installation, you can be sure that the wine stored in your cellar will remain in top condition. Furthermore, its rotary compressor, reaction turbine, and energy-saving motor fan permit notable energy efficiency, resulting in lowered energy bills over time. Preserve your precious vintages in the finest manner with the Wine Master ARM15.

The features and benefits of the WineMaster ARM15 Wine Conditioning Unit:
    • Silent operation (38dB) creating a peaceful ambience
    • Powered by regular 220-204v mains supply – plugin and ‘go’
    • Low energy consumption – low running costs
    • Proven engineering providing worry-free long-term performance
    • Regulated by a wired electronic thermostat for reliability
    • Easy-reach dust filter for easy maintenance
    • Cooling Power – 500w at 15 °C**

*Note:  Installing Wine Arm 15 in areas with limited ventilation can be achieved by integrating an air duct and pump set-up. If you would like to learn more or need help, don’t hesitate to contact us.

Wine Master ARM15 Specification:
    • Power supply: 5 Amp – supplied with prewired UK plug
    • Cooling volume: up to 15m³**
    • Unit dimensions: H.317 x W.885 x D.424 mm
    • Weight: 31 kg
    • Cooling capacity: 500 W at 15°C **
    • Electrical power rating: 400 W
    • Sound level (at 1 m): 38 dB
    • Refrigerant: R290
    • Temperature regulation: Preset to 13 °C adjustable between 11 and 16 °C**
    • Maximum operation temperature:  35°C**

**Proper insulation tailored to the cellar’s size will help lower the energy consumed when operating temperatures are moderate. However, should the temperature reach 35 °C, the device may struggle to maintain a cellar temperature of 12 °C.

Requirements
Electrical

A standard socket outlet is required; this system comes with a standard UK plug.

Water Drainage

The Winemaster ARM15 features an additional internal water tray. Should excessive condensation occur, a water tube must be attached to the drainage system.

Cellar Insulation

To ensure optimal wine conditioning and achieve the ideal temperature in the cellar, it is essential to insulat floors, ceilings, and walls using rigid insulation material like XPS or KingsPan, as the manufacturer recommends. Additionally, the cellar door should be insulated, and any glass door must feature double or triple glazing. Refer to the table below for the necessary insulation thickness based on the cellar’s size.

winemaster arm15, wine arm15, wine master arm15x, wine master arm15, arm15, arm15x, fondis winemaster arm15, wine arm 15 manual

We're Here To Help

If you need any help with your wine cellar installation, we’re more than willing to provide our services. Our expert assistance covers product selection, insulation guidance, unit placement, and electrical advice contact us now

Already own a Winemaster product and need a service visit?

We are here to assist you with the entire Winemaster product range, including service visits, fault finding, repairs, and replacement parts.

You can contact us by calling 020 3286 8525 or completing our contact form. Our team will promptly contact you to discuss your needs.



Wine Enquiries on product page

Strictly no marketing or offering service enquiries

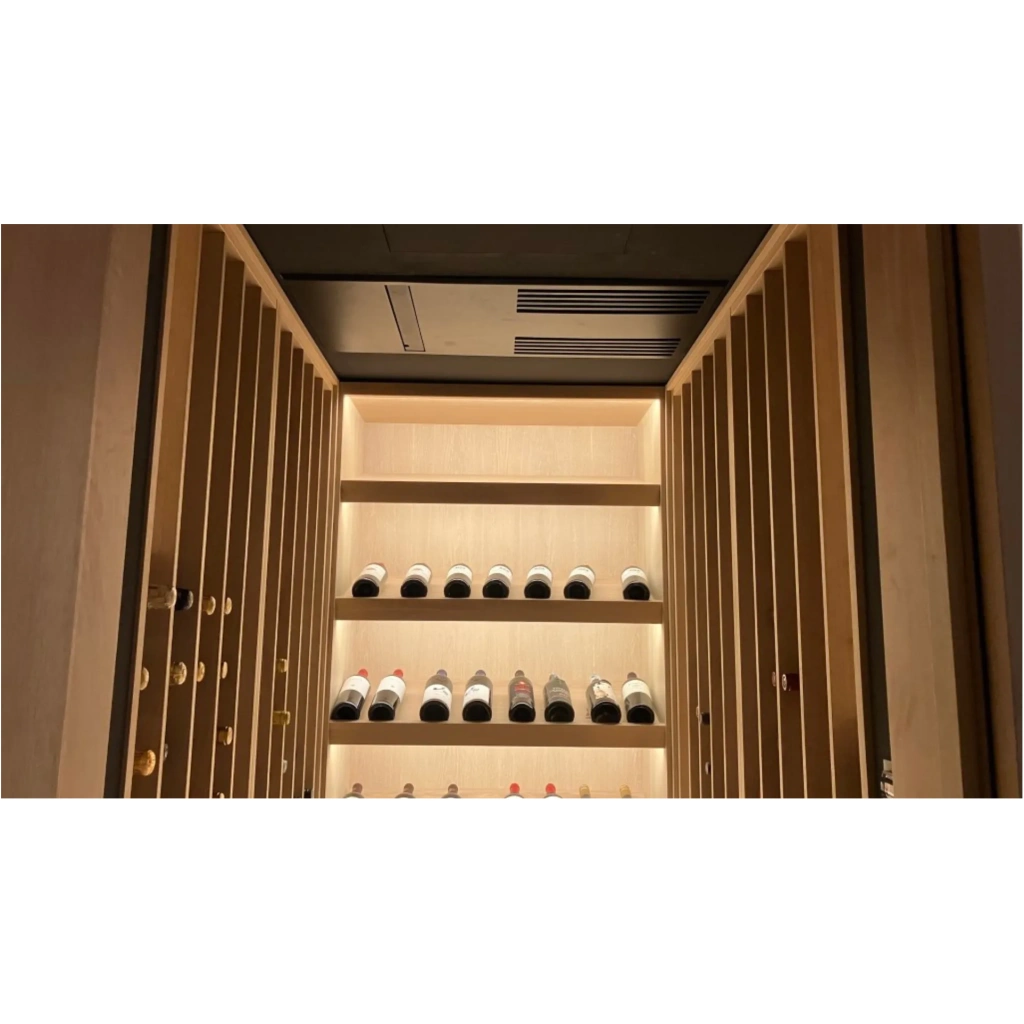

WineMaster ARM15X Ceiling Mounting

The WineMaster ARM15X, a ceiling-mounted wine conditioning unit, incorporates the latest refrigerant technology marked by the letter X in its nomenclature.
Rated 4.50 out of 5 based on 6 customer ratings
(90% customers satisified)
WineMaster ARM15 Wine conditioner has been specifically crafted to aesthetically fit within your wine cellar, while still managing to stand out as the focal point. It is built using the latest in refrigerant and compressor technology, to provide you with the energy savings you desire.
This high-quality air conditioner promises superior performance, achieved through the utilization of premium materials, a robust energy-efficient system, and easy installation. The WineMaster ARM15 is suitable for wine cellars up to 15m3.
SKU: WINEARM15 Category: Tag:

Wine Master ARM15  Manual

When purchasing Wine Master units from Elextric Ltd, you can benefit from a product warranty, outstanding customer service, and a single point of contact for any enquiries.

View/download the Wine Master ARM 15 manual Here



Handy Tips
Greetings, thank you for taking the time to view this section. I’m Michel, the Managing Director and Lead Engineers at Elextric Ltd, and I have chosen to share my expertise with architects, contractors, and the self-proclaimed wine connoisseurs out there. My knowledge comes from a number of years of managing environment control management projects, one of which was centred around wine storage.

For your convenience, I have put together this checklist, acquired from prior assignments and accumulated years of experience, to assist in your pursuit of a flawlessly designed wine storage system.


– Sealed environment: When describing the importance of cellar insulation to my clients, I often use the term sealed environment. Same as a cold room or a fridge, creating a fully-enclosed area with insulated walls, ceiling, floor, and door will construct a tightly-sealed environment. I recommend using XPS insulation materials for this task.

– Wine Racking: I would recommend the racking per hole, as it allows the entire bottle to reach the ideal temperature and promotes air circulation within the cellar. Ultimately, however, the decision is up to the client.

– Unit location:  The Winemaster is reliant upon air circulation for its function, and thus it is highly advised to locate the unit as centrally as possible.

– Water drainage: When planning for the draining of condensation water, one should keep in mind that water always follows the laws of gravity. If the pipe length is too long, a condensation pump may be used as a viable solution.

– Operation temperature: This is related to the hot side of the unit (The compressor side) where the heat exchange is happening. For example, if the heat exchange happens within a plant room or utility room and the ambient temperature exceeds 30°c, an MHRV Mechanical Heat Recovery Ventilation system must be used.

Planning ahead is key to determining which wine conditioning unit to install. Then, design your cellar around the unit to ensure that both the electrical connection and the unit are within easy access.

I will update this section regularly based on my interactions with customers. If you have any queries or need help, please don’t hesitate to contact me through the enquiry form.

Regular maintenance of the dust filter is essential. Use a soft vacuum to clean it once every three months, and ensure it is replaced annually. To purchase a new dust filter for the Winemaster ARM15 X, please visit this page HERE

Should your WineMaster Arm15X be experiencing issues, and you wish to arrange a service visit, please call 020 3286 8525 or fill out our contact form. Our team will respond promptly to assist you.
Wine Enquiries on product page

Strictly no marketing or offering service enquiries

Why us?

  • Single Point Of Contact

    Our prominent attribute involves offering a singular point of contact for all aspects of project support, sales, warranty, and repairs.

  • Price Match Promise

    We promise to match the price offered by any dealer.

  • Warranty

    2 Years UK based warranty provided directly by us, without any involvement of third parties.

  • Reviews

    Our reputation is of utmost importance. We invite you to peruse our reviews on Trustpilot to gain insight into the experiences of our customers.

Payment & Security

winemaster arm15, wine arm15, wine master arm15x, wine master arm15, arm15, arm15x, fondis winemaster arm15, wine arm 15 manual

Rest assured that your payment information is processed with the utmost security. We take measures to ensure that credit card details are not stored and that we do not have access to this sensitive information.

In stock, ready for despatch.
Delivery is usually within 3-5 working days.

Original price was: £5,390.00.Current price is: £4,998.00. Inc. VAT
